背景

最近编写gitea runner的CI\CD脚本自动构建，由于要打包各个平台上的应用包因此需要MacOS环境因此需要安装MacOS。

经过搜索发现了几个方法适用于快速在UNRAID安装上MacOS虚拟机：

前两个都是描述MacinAbox的使用和源地址。 3为基础的osx的本源项目macinAbox应该也使用的本项目。其也介绍了Unraid安装mac的介绍供参考。

原理

Macinbox Docker镜像为一个在UNRAID上一个傻瓜式的，自动化配置KVM的工具。它会自动下载opencore.img可安装脚本。运行它的脚本后会生成unraid虚拟机配置文件。它下载的文件： opencore.img, mac_install.img 另外还会开辟一块磁盘作为macos的安装的空间。如果直通则不需要该文件，默认100G

Opencore.img 为一个UEFI固件，可以让非苹果硬件支持安装macos

Mac_istall.img 为一个mac的Base System.img恢复镜像，可以进行macos系统的安装，可以理解为windows10的恢复环境

OpenCore的基本原理：

挂载opencore为UEFI引导以支持非苹果硬件。
挂载mac_install 为安装引导盘
安装引导盘内格式化目标安装磁盘，并安装系统
(可选)安装后系统，系统内安装OpenCore configurator.app工具，用来配置引导像。如：自动选择启动硬盘顺序
(可选)也可使用MountEFI工具挂载当前opencore的EFI分区并复制到所在硬盘，这样就可以不用挂载opencore镜像。

OpenCore相关知识参考：https://blog.sirgo.top/archives/1718802687217 。如果不用Macinabox也可以自己使用opencore来做引导安装macos

安装

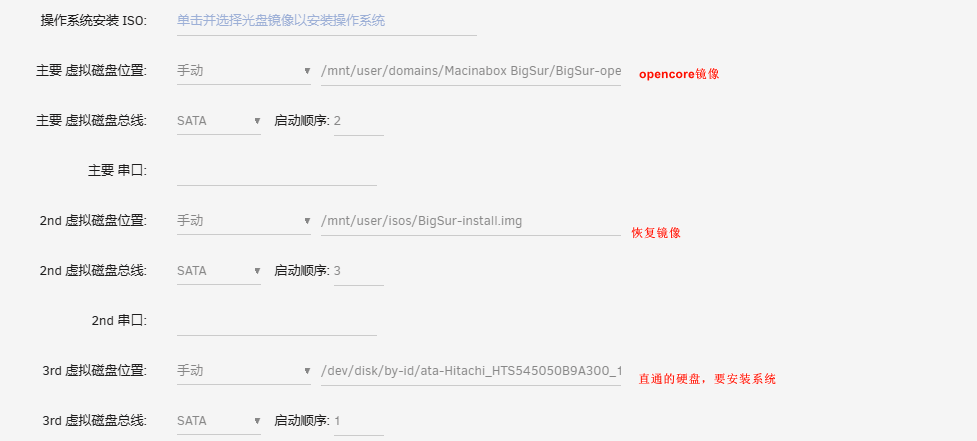

参考https://cybertalk.io/en/installing-a-macos-vm-on-unraid-virtualized-mac/ 进行安装。由于我这里直通硬盘因此直接挂载直通硬盘，如下：

注意事项

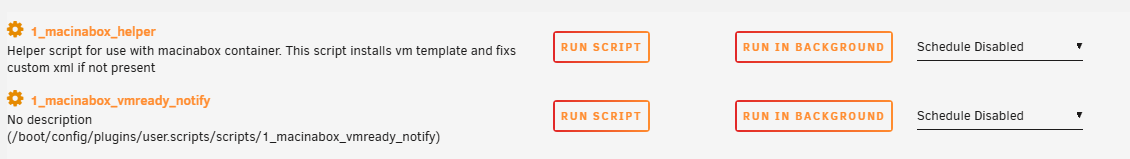

执行下面的script脚本时，需要下载opencore镜像和macos的镜像文件可能需要等一些时间。有时可能导致安装失败，可以去相应下载的文件查看镜像是否下载完毕
安装过程中：按照1\2会反复进行安装，多安装几次即可，安装过程超慢。
关于格式化APFS和Mac Exented分区。 SSD使用APFS HDD使用Mac Exentend(HFS+)。我这里是直通硬盘给虚拟机所以需要考虑这个问题。

安装后设置

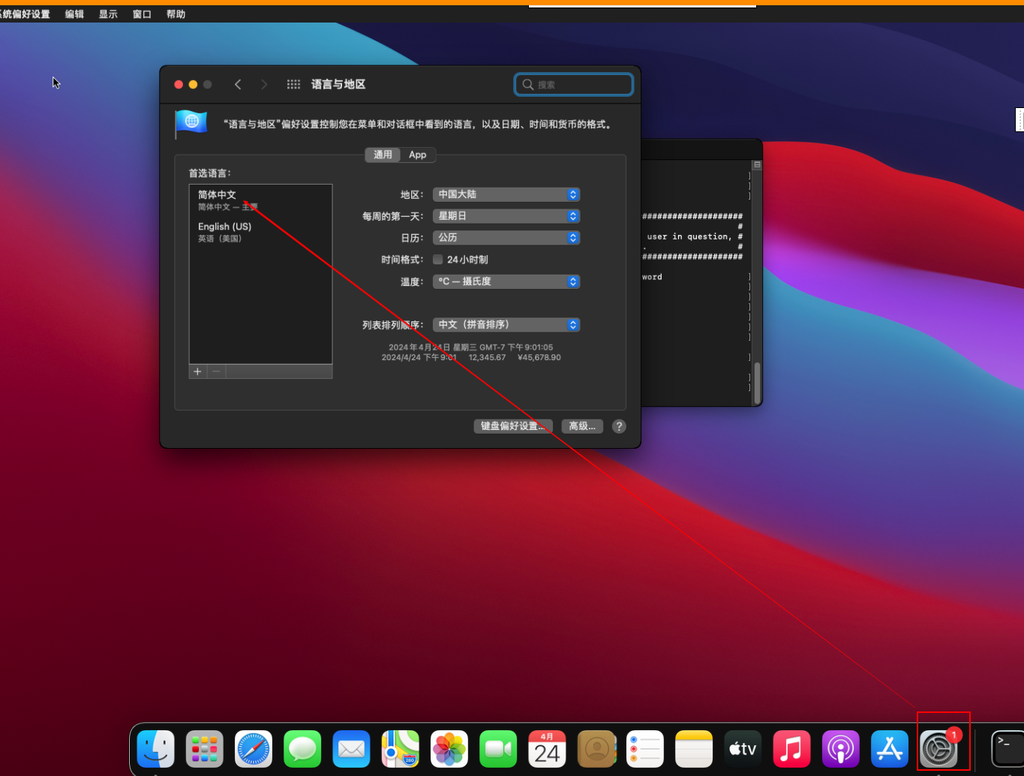

设置中文，如图，把简体中文设置为第一位即可。如果不可以拖动，删除英文再添加然后重
开启远程桌面和远程登录
安装brew
如果访问raw.githubusercontent.com有问题，可以参考：https://zhuanlan.zhihu.com/p/687163530 更来源来解决。（另外一个方法是修改hosts来访问githubusercontent.com）
```
/bin/bash -c "$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/HEAD/install.sh)"
```

其他

注意

如果UNRAID编辑虚拟机，如果不是编辑xml方式修改，则会丢失macinbox的配置! ，可以先复制出来再修改或直接编辑xml方式修改配置项。

备份

Macos BigSur的KVM XML备份:

<?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm' id='1' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'>
  <name>Macinabox BigSur</name>
  <uuid>885a457b-974e-4e2d-bc54-6e12f5f89732</uuid>
  <description>MacOS Big Sur</description>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows 10" icon="default.png" os="osx"/>
  </metadata>
  <memory unit='KiB'>8388608</memory>
  <currentMemory unit='KiB'>8388608</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>4</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='0'/>
    <vcpupin vcpu='1' cpuset='1'/>
    <vcpupin vcpu='2' cpuset='2'/>
    <vcpupin vcpu='3' cpuset='3'/>
  </cputune>
  <resource>
    <partition>/machine</partition>
  </resource>
  <os>
    <type arch='x86_64' machine='pc-q35-4.2'>hvm</type>
    <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader>
    <nvram>/etc/libvirt/qemu/nvram/885a457b-974e-4e2d-bc54-6e12f5f89732_VARS-pure-efi.fd</nvram>
  </os>
  <features>
    <acpi/>
    <apic/>
  </features>
  <cpu mode='host-passthrough' check='none' migratable='on'>
    <topology sockets='1' dies='1' cores='2' threads='2'/>
    <cache mode='passthrough'/>
  </cpu>
  <clock offset='utc'>
    <timer name='rtc' tickpolicy='catchup'/>
    <timer name='pit' tickpolicy='delay'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/domains/Macinabox BigSur/BigSur-opencore.img' index='3'/>
      <backingStore/>
      <target dev='hdc' bus='sata'/>
      <boot order='1'/>
      <alias name='sata0-0-2'/>
      <address type='drive' controller='0' bus='0' target='0' unit='2'/>
    </disk>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/isos/BigSur-install.img' index='2'/>
      <backingStore/>
      <target dev='hdd' bus='sata'/>
      <alias name='sata0-0-3'/>
      <address type='drive' controller='0' bus='0' target='0' unit='3'/>
    </disk>
    <disk type='block' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source dev='/dev/disk/by-id/ata-Hitachi_HTS545050B9A300_101226PBN403171AMR9E' index='1'/>
      <backingStore/>
      <target dev='hde' bus='sata'/>
      <serial>vdisk4</serial>
      <alias name='sata0-0-4'/>
      <address type='drive' controller='0' bus='0' target='0' unit='4'/>
    </disk>
    <controller type='usb' index='0' model='ich9-ehci1'>
      <alias name='usb'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <alias name='usb'/>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci2'>
      <alias name='usb'/>
      <master startport='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1' multifunction='on'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci3'>
      <alias name='usb'/>
      <master startport='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
    </controller>
    <controller type='pci' index='0' model='pcie-root'>
      <alias name='pcie.0'/>
    </controller>
    <controller type='pci' index='1' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='1' port='0x10'/>
      <alias name='pci.1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0' multifunction='on'/>
    </controller>
    <controller type='pci' index='2' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='2' port='0x11'/>
      <alias name='pci.2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x1'/>
    </controller>
    <controller type='pci' index='3' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='3' port='0x12'/>
      <alias name='pci.3'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x2'/>
    </controller>
    <controller type='pci' index='4' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='4' port='0x13'/>
      <alias name='pci.4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x3'/>
    </controller>
    <controller type='pci' index='5' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='5' port='0x14'/>
      <alias name='pci.5'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x4'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <alias name='virtio-serial0'/>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/>
    </controller>
    <controller type='sata' index='0'>
      <alias name='ide'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:22:1e:83'/>
      <source bridge='br0'/>
      <target dev='vnet0'/>
      <model type='virtio'/>
      <alias name='net0'/>
      <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>
    </interface>
    <serial type='pty'>
      <source path='/dev/pts/0'/>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
      <alias name='serial0'/>
    </serial>
    <console type='pty' tty='/dev/pts/0'>
      <source path='/dev/pts/0'/>
      <target type='serial' port='0'/>
      <alias name='serial0'/>
    </console>
    <channel type='unix'>
      <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-1-Macinabox BigSur/org.qemu.guest_agent.0'/>
      <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/>
      <alias name='channel0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='tablet' bus='usb'>
      <alias name='input0'/>
      <address type='usb' bus='0' port='1'/>
    </input>
    <input type='mouse' bus='ps2'>
      <alias name='input1'/>
    </input>
    <input type='keyboard' bus='ps2'>
      <alias name='input2'/>
    </input>
    <graphics type='vnc' port='5900' autoport='yes' websocket='5700' listen='0.0.0.0' keymap='en-us'>
      <listen type='address' address='0.0.0.0'/>
    </graphics>
    <audio id='1' type='none'/>
    <video>
      <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/>
      <alias name='video0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/>
    </video>
    <memballoon model='none'/>
  </devices>
  <seclabel type='dynamic' model='dac' relabel='yes'>
    <label>+0:+100</label>
    <imagelabel>+0:+100</imagelabel>
  </seclabel>
  <qemu:commandline>
    <qemu:arg value='-usb'/>
    <qemu:arg value='-device'/>
    <qemu:arg value='usb-kbd,bus=usb-bus.0'/>
    <qemu:arg value='-device'/>
    <qemu:arg value='isa-applesmc,osk=ourhardworkbythesewordsguardedpleasedontsteal(c)AppleComputerInc'/>
    <qemu:arg value='-smbios'/>
    <qemu:arg value='type=2'/>
    <qemu:arg value='-cpu'/>
    <qemu:arg value='Penryn,kvm=on,vendor=GenuineIntel,+kvm_pv_unhalt,+kvm_pv_eoi,+hypervisor,+invtsc,+pcid,+ssse3,+sse4.2,+popcnt,+avx,+avx2,+aes,+fma,+fma4,+bmi1,+bmi2,+xsave,+xsaveopt,+rdrand,check'/>
  </qemu:commandline>
</domain>

其他参考资料

https://doc.yoouu.cn/interest/hackintosh.html
